| Authentication: |
|
Model |
|

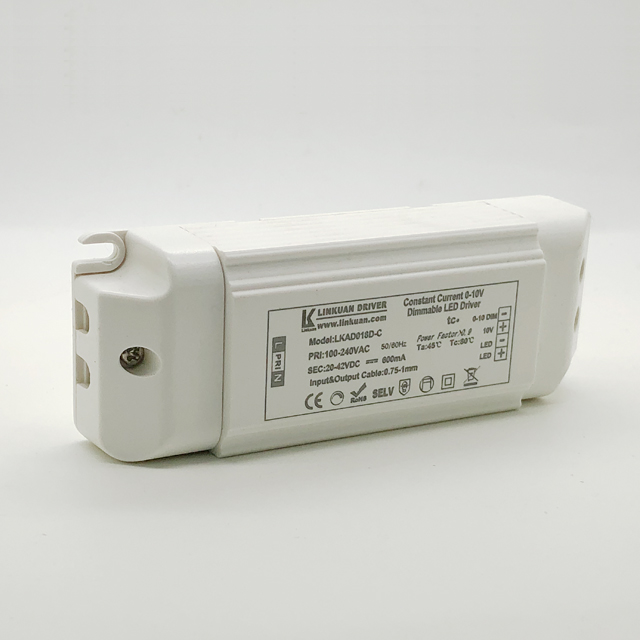

LKAD018D |
|
输入 Input |
AC电压范围/AC Voltage range |
100-240V |
|
频率/Frequency |
50/60hz |
|
|
谐波/THD |
<10% |
|
|
功率因数/Power factor |
0.95/230VAC |
|
|
输出 Output |
额定电压/Rated voltage |
40V |
|
空载电压/No-load Voltage |
47V |
|
|
DC电压范围/DC voltage range |
20-40V |
|
|
DC电流范围/DC current range |
570--630mA |
|
|
电流精度/Current precision |
±3% |
|
|
额定功率/Rated power |
25W |
|
|
开机延时/Setup Time |
≤0.5s/230VAC |
|
|
使用环境Environment Requirements |
工作温度/湿度要求 Operating Temp./RH |
-30～+45℃/20～95% |
|
储存温度,湿度要求 Storage Temp./RH |
-40～+80℃/10～95% |
|
|
安全和电磁兼容 |
认证编号/Certificate |
---- |
|
其他 |
尺寸/Size |
L123mm*W44mm*H27.3mm |
|
重量/Net weight |
80g |
