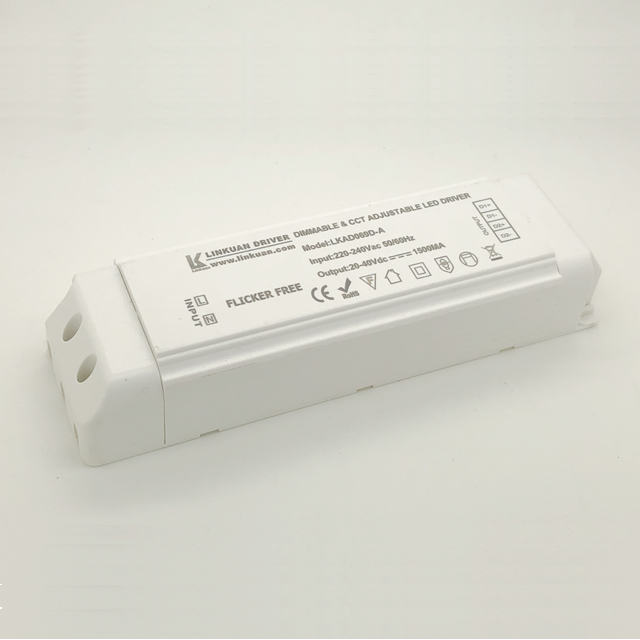

LKAD069D-A 67W 10-42V 1600mA CCT Adjusting LED drivers
  • LKAD069D-A 67W 10-42V 1600mA CCT Adjusting LED drivers

LKAD069D-A 67W 10-42V 1600mA CCT Adjusting LED drivers

  • Product model : LKAD069D-A
  • Input voltage : 200-240Vac
  • Output power(W) : 67W
  • Output voltage : 10-42Vdc
  • Output current(A) : 1100-1600mA
  • Light adjustment : CCT Adjusting
  • Size(MM) : 185x55x32mm
  • Product Detail
  • Send Inquiry
  • Download

LKAD069D-A 67W 10-42V 1600mA CCT Adjusting LED drivers


  • 200-240VAC(50/60Hz) Input
  • High efficiency, high power factor, high stability, high light ratio
  • CCT Adjusting, Cool white to warm white
  • Short circuit,over voltage,over current and over temperature protection;
  • Remote control performance is stable, any angle direction can be controlled.
  • independent, ClassⅡ constant current type;
  • degree of protection IP20;
  • can be achieved Lighting,ceiling light,down light and panel light;
  • 3 years warranty.

More Details

Model LKAD069D-A
输入             Input 输入电压范围/Input Voltage range 120-240V
频率/Frequency 50/60hz
谐波/THD ≤15%
功率因数/Power factor 0.95/240VAC
输入电流 Input current(mA) 650MA/120VAC
待机功耗 stand_by power 0.8W
浪涌电流 Inrush Current(Max.) ≤30A@240VAC
漏电流 Leakage Current <1MA/240VAC
输出      Output 额定电压/Rated voltage 40V
空载电压/No-load Voltage ≦46V
工作电压范围/working voltage range 15-42V
额定电流规格/Rated current specification 1700MA
电流精度/Current precision (+/-)3%
额定功率/Rated power 70W
开机延时/Setup Time ≤0.5s/230VAC
输出线性调整率Output Line Regulation ±5%
温度漂移temperature drift ±10%
保护特性 开路保护Output open circuit protection 有/Enable
短路保护Short Circuit Protection 打嗝模式/Hiccup mode
使用环境    Environment Requirements 工作温度/湿度要求                    Operating Temp./RH -30~+45℃/20~95%
储存温度,湿度要求                   Storage Temp./RH  -40~+80℃/10~95%
安全和电磁兼容 Safety & EMC 认证编号/Certificate 符合CE/ meet CE
耐压 withstand voltage 3750VAC/60S
绝缘阻抗insulation resistance 500V>100M
浪涌等级EMS immunity IEC6100-4-5(L-N:1KV)
安规标准Safety standard EN61347,GB19510
电磁干扰electromagnetic interference EN55015,EN61000-3-2
电磁抗干扰Electromagnetic Susceptibility EN61000-4-
IP等级说明 IP level description IP20
质保说明Warranty instructions 3年/3 years
尺寸/Size 175*50*30MM
