| Authentication: |

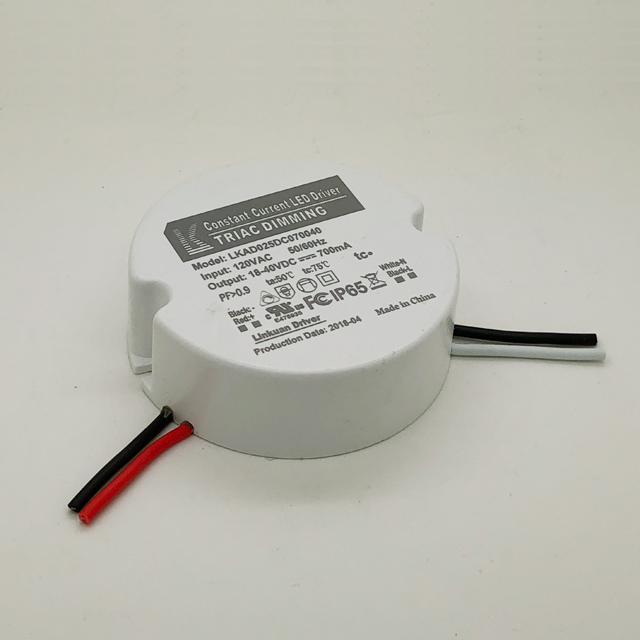

| Model | LKAD025D | |
| 输入 Input | AC电压范围/AC Voltage range | 90-130V |
| 频率/Frequency | 50/60hz | |
| 谐波/THD | ||
| 功率因数/Power factor | 0.99/110VAC | |
| 输出 Output | 额定电压/Rated voltage | 40V |
| 空载电压/No-load Voltage | 45V | |
| DC电压范围/DC voltage range | 18-40V | |
| DC电流范围/DC current range | 595-650mA | |
| 电流精度/Current precision | (+/-)5% | |
| 额定功率/Rated power | 26W | |
| 开机延时/Setup Time | ≤0.5s/230VAC | |
| 使用环境 Environment Requirements | 工作温度/湿度要求 Operating Temp./RH | -30～+45℃/20～95% |
| 储存温度,湿度要求 Storage Temp./RH | -40～+80℃/10～95% | |
| 安全和电磁兼容 | 认证编号/Certificate | UL:E478938 |
| FCC:WTD14S0918347E | ||
| 其他 | 尺寸/Size | Dia75xH30mm |
| 重量/Net weight | 107g |
